Ultra thin-perfect basic design

Lumaire Basic

Lumaire Basic

Ultra thin LED sheet Lumaire Basic radiates class. The thinnest LED panel in the market is of 8 mm thickness only. These acrylic light panels scatter the light to perfection, making it irresistible to take the eyes off of the lighting solution. Different design options enable custom application. Perfectly simple customization reveals limitless possibilities to emphasize your individuality.

  • Restriction of Hazardous Substances Directive

  • CE certificate

  • Recyclable components

  • Energy rating

• Frame thickness is just 8mm
• Brightness up to 11000lx on the surface depending on size
• Single or double sided, curved and custom shape options
• Low power consumption
• Wide application posibilities, from interior design to signage
• OPAL front cover 2mm, optional

Layer by layer

Lumaire Basic Structure

The Lumaire Basic structure consists of a patent acrylic sheet and a reflector
(when the LED light sheet emits light on only one side of the surface) or a
diffuser (if light emits from both sides of the surface) mounted in a steel
frame with an LED strip.

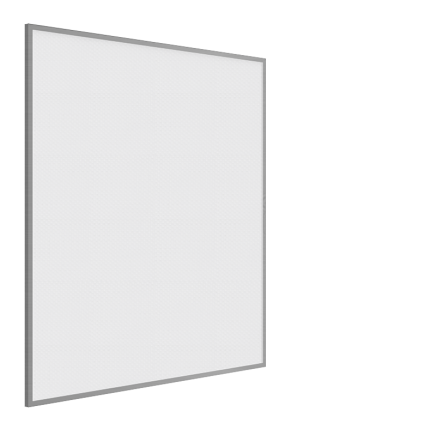

Basic ultra thin LED sheet square-shaped

Basic (Classic)

Classic Lumaire Basic, the paper thin led light sheets, remain 5mm∗. The minimalistic LED light sheet radiates elegance and style.

∗ Actual construction including aluminium frame is 8mm in height.

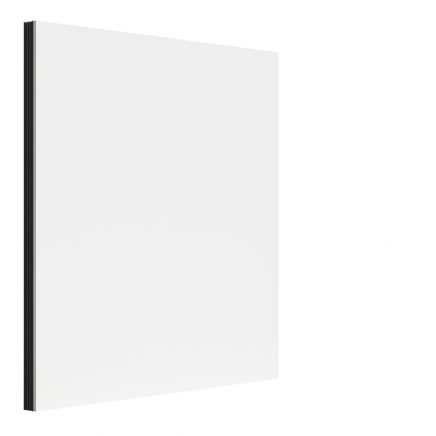

Basic (Milky)

It’s the classic Lumaire Basic with Milky coating that dims the bright light and softens the texture of the acrylic sheet

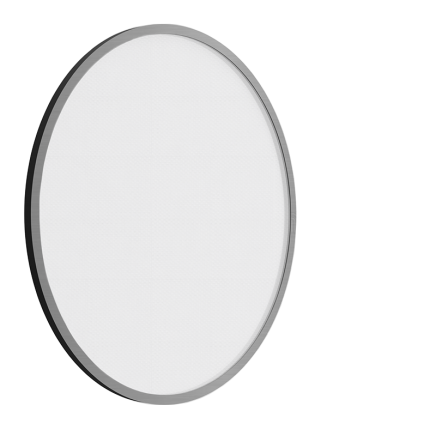

Round custom shape thin LED sheet

Basic (Custom)

With exceptional precision, we make Lumaire Basic custom LED sheet panels of various shapes and sizes. The unique product emphasizes your individuality.

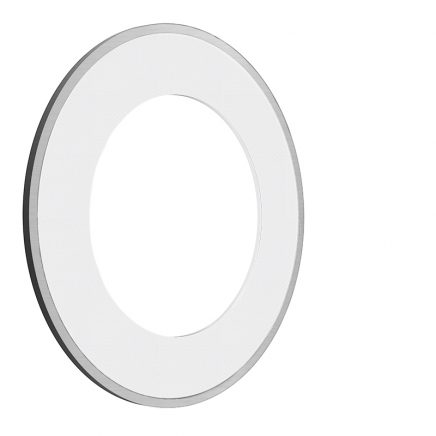

Custom shape Lumaire Basic panel, round hollow thin LED sheet

Basic (Special)

Lumaire Basic of non-standard dimensions. Each centimetre comprises details that make up the outstanding outline. Perfect for individual business and interior lighting needs.

Lumaire Basic Classic Design LED light sheet
1 / 5

Main material

Clear acrylic (PMMA)

LED tape power

15W/m

Frame thickness

8 mm

Luminous efficiency

up to 160lm/W

IP rating

IP 20

Colour temperature

3000K 4000K 5000K 6500K

Maximum size

2800x1250 mm

Lifetime

> 50,000 hours

Operating temperature

-30°C ~ + 40°C

Power supply

DC 12V / 24V / CC Adaptor

Working voltage

DC 12V / DC 24V / CC

Input voltage

AC 100 ~ 240V 50/60Hz
